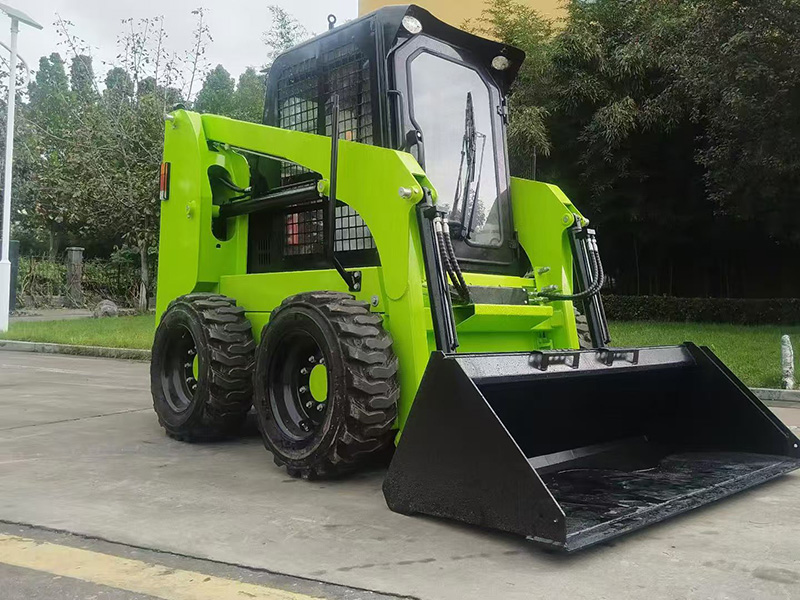

JC45 Wheel mini loader

✔️ Compact dimensions – small width and dimensions allow you to work in narrow passageways, door openings and limited spaces.

✔️ High maneuverability – small turning radius ensures excellent handling in tight warehouse and urban areas.

✔️ Versatility – a wide range of suspension equipment for various tasks: buckets, villas, snow droppers and brushes.

✔️ Warehouses and production workshops – the movement of pallets, bulk materials and finished products.

✔️ Farms – loading of feed, fertilizers and grain, clearing of territories.

✔️ Utilities – snow removal, cleaning of streets and parks, improvement of territories.

Product details

Category Parameter JC45
Operating characteristics Operating weight with bucket, kg 3000
Rated operating load capacity, kg 700
Bucket capacity, m³ 0.4
Maximum travel speed, km/h 12
Maximum tractive force, kN
Boom lifting force, kN
Bucket breakout force, kN
Engine Manufacturer Xinchai
Engine model C490BPG
Rated power, kW/rpm 36.7/2650
Displacement, L 2.27
Emission standard China National Standard II
Dimensions A. Maximum working height, mm 3980
B. Bucket hinge pin height, mm 3080
C. Cab top height, mm 2140
D. Bottom height of level bucket, mm 2913
E. Machine length without bucket, mm 2640
F. Overall length with bucket attached, mm 3420
G. Dump angle at maximum height, ° 40
H. Dump height, mm 2380
I. Dump reach, mm 700
J. Bucket back-tilt angle on ground, ° 30
K. Bucket back-tilt angle at maximum height, ° 104
L. Wheelbase, mm 991
M. Ground clearance, mm 185
N. Departure angle, ° 20
O. Front turning radius without bucket, mm 1168
P. Front turning radius, mm 1958
Q. Rear turning radius, mm 1630
R. Rear axle to bumper distance, mm 1108
S. Track width (standard tires), mm 1450
T. Overall width (standard tires), mm 1720
U. Standard bucket width, mm 1740

Twenty years of engineering experience, own factory, CE/ISO certificates.

Automated lines, large stock of finished products, fast shipping.

Processing of custom equipment: loaders, mining and storage equipment.

24/7 support, worldwide spare parts supply, operator training.
