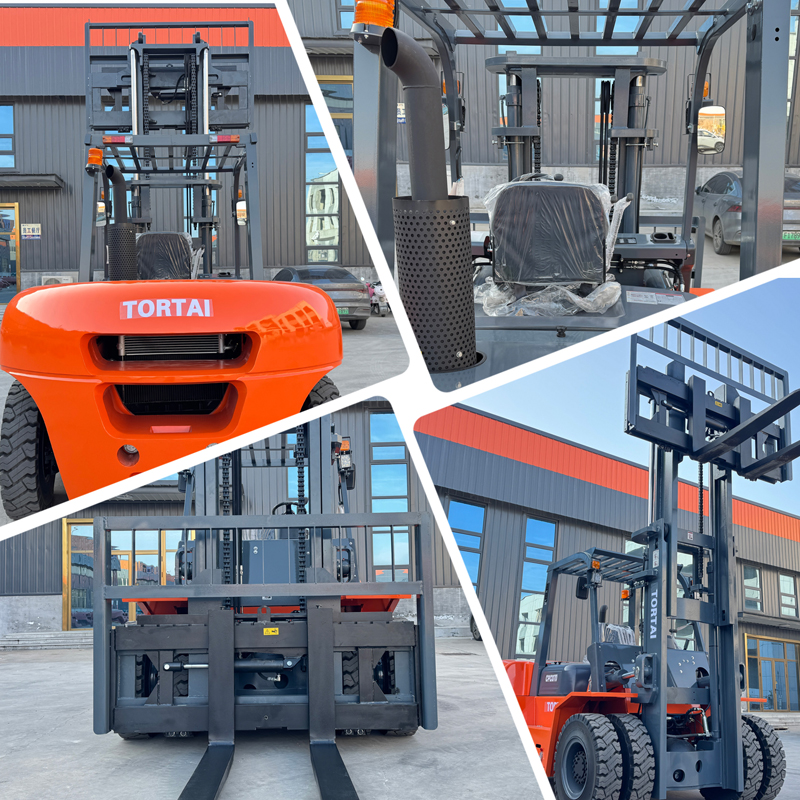

7ton internal combustion forklift

7 Ton Diesel Forklift

Product advantages: High heavy-load efficiency, reinforced mast structure, excellent off-road performance.

Application scenarios: Port terminals, heavy machinery factory, mine auxiliary handling, large freight yard.

Services we offer: Customization (tonnage, forks, lifting height, attachments, color, brand, EPA engine), 1-year after-sales service, free replacement of spare parts, certificates including ISO, CE, 724h online customer service and technical support. Tires can also be customized

Get Inquiry

Product details

Model	–	CPCD70
Power	–	Diesel
Rated lifting load	KG	7000
Load center distance	mm	600
Driving mode	–	Seat driving
Length With fork	mm	4780
Length Without fork	mm	3600
Width	mm	1970
Height when the mast not raised	mm	2450
Overhead guard height	mm	2500
Wheelbase	mm	2250
Front overhang	mm	600
Rear overhang	mm	720
Minimum ground clearance	mm	230
No-load maximum lifting height	mm	3000
Free lifting height	mm	210
Minimum turning radius (outer side)	mm	4150
Minimum right angle aisle width	mm	5390
Mast tilt angle (front/rear)	(°)	6°/12°
No-load maximum lifting speed	mm/s	530
Full-load maximum lifting speed	mm/s	500
No-load maximum working speed	Km/h	29
Full-load maximum working speed	Km/h	24
Full-load maximum gradeability	%	15
Forklift weight under standard no-load condition	Kg	9600
Axle full load F/R	–	4/2
Tire no. (F/R)	–	Air inflation tire
Tire type (F/R)	–	8.25-15NHS
Brake/service brake	–	Power brake–pedal
Parking brake	–	Mechenical–manual
Battery voltage/capacity	V/Ah	2-12/80
Engine model	–	Quanchai 4J1-115C32
Engine fuel tank capacity	L	160
