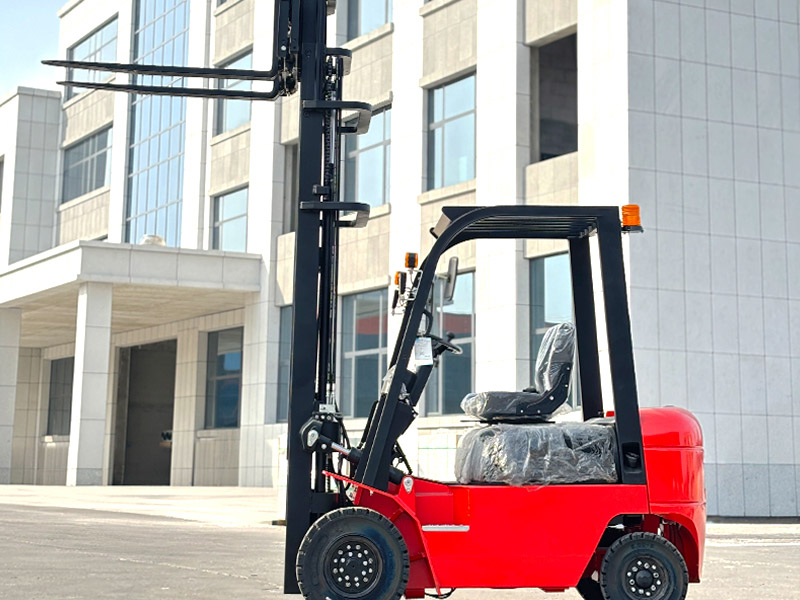

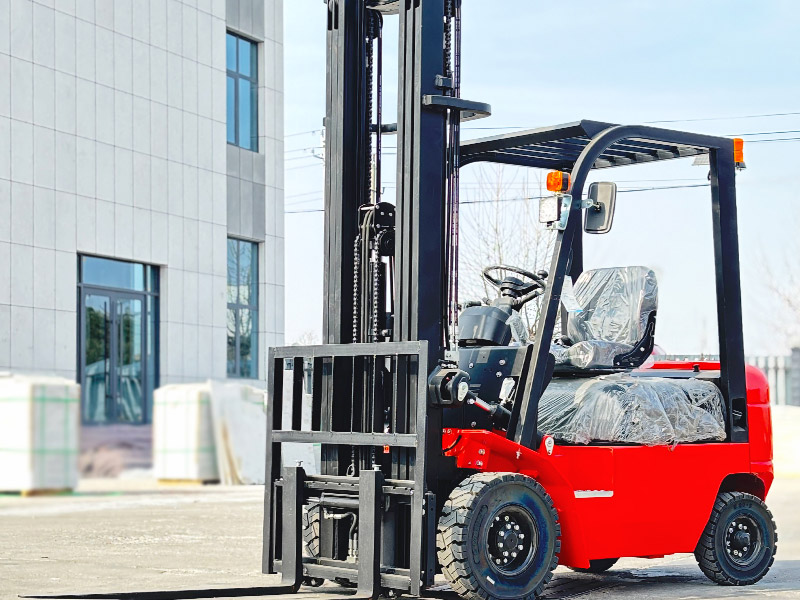

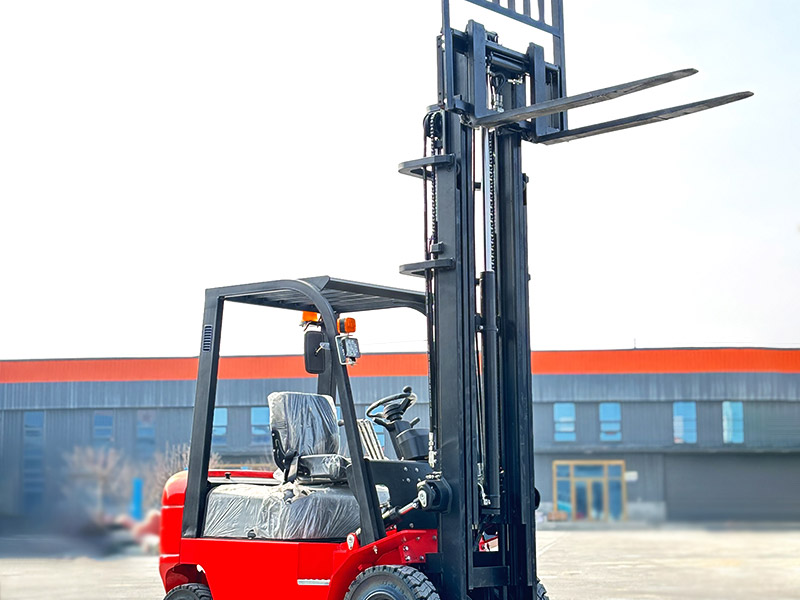

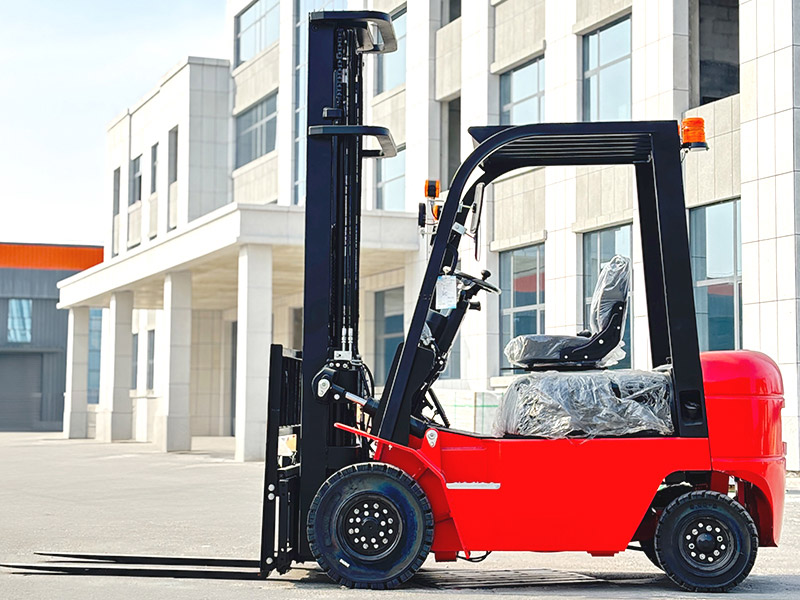

The 1.5-T Diesel Loader is a compact and productive machine designed to work in a variety of conditions. The 35kW diesel engine delivers high performance and long uptime without the need for recharging, making this model the ideal choice for outdoor sites, warehouses and construction sites.
The loader is characterized by a reliable design: the reinforced frame and all-metal body guarantee durability and resistance to damage. Compact dimensions and small turning radius make it possible to work efficiently in confined spaces.
Economical fuel consumption and a modern fuel system reduce operating costs. The comfortable cabin with a panoramic view and ergonomic control creates comfortable conditions for the operator to work.
| Parameter | Value |
|---|---|
| Model | TORTAI DL-1500 |
| Lifting capacity | 1,500 kg |
| Engine | Diesel, 35 kW / 48 hp |
| Operating weight | 4,200 kg |
| Maximum speed | 18 km/h |
| Lift height (standard) | 3,000 mm |
| Turning radius | 1,950 mm |
| Fuel tank capacity | 45 L |
| Fuel consumption | ~4 L/h |
| Drive | 2×2, rear-wheel drive |
| Transmission | Hydro-mechanical, 2 speeds |
| Tires | 6.50-10 (pneumatic) |
| Overall dimensions (L×W×H) | 3,500 × 1,200 × 2,200 mm |
| Ground clearance | 120 mm |
| Operating temperature | from -20°C to +45°C |
Fields of application
Construction sites – moving construction materials, loading and unloading machines, feeding materials to the workplace.
Open warehouses – the movement of pallets and building materials, work on uneven surfaces and soil.
Production workshops – feeding raw materials to production lines, moving finished products and waste.
Logistics centers – cargo handling, loading and unloading of containers, sorting of goods in warehouses.
Agriculture is the movement of feed, fertilizers and agricultural products.
Utilities – cleaning up areas, moving garbage and various materials.
