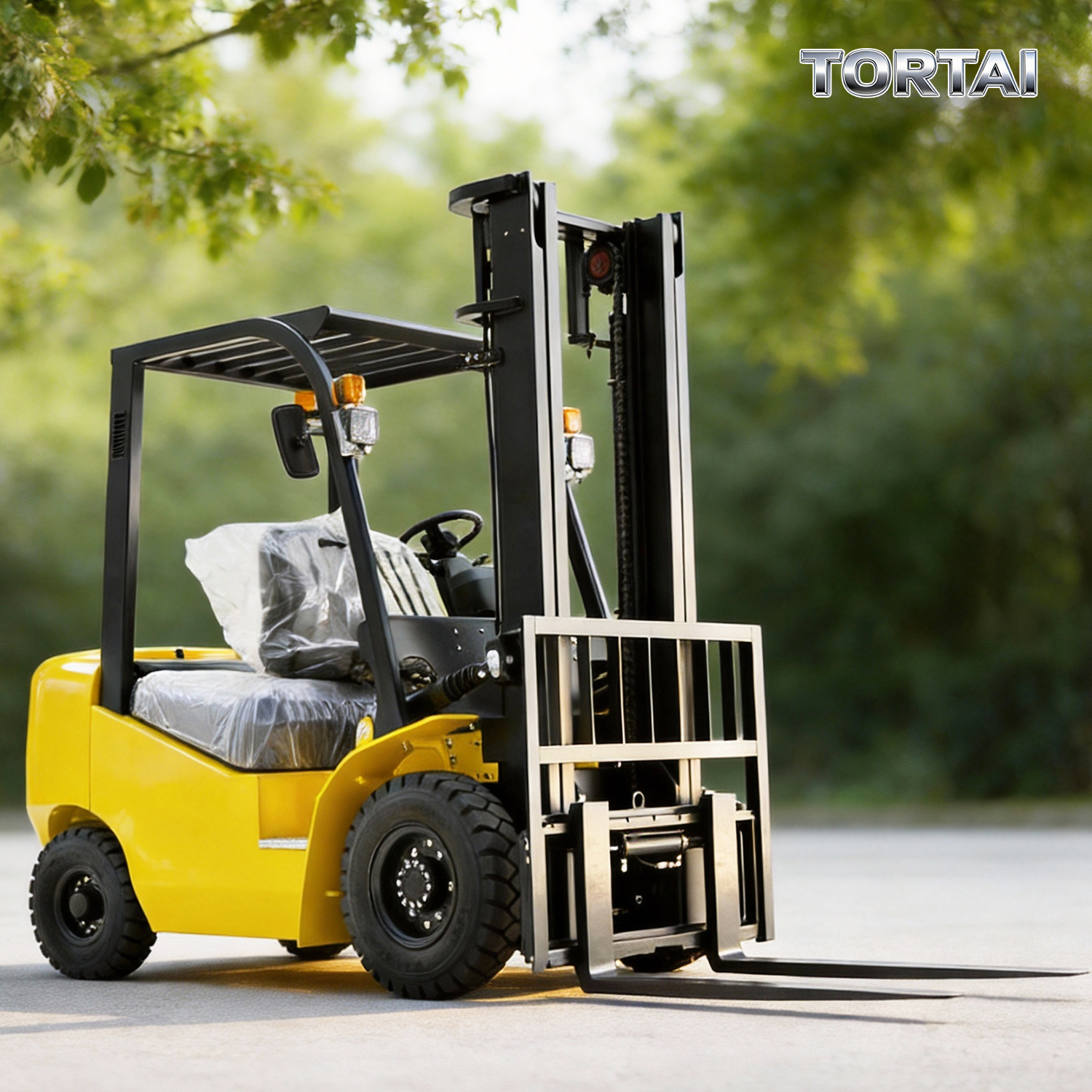

2.5ton internal combustion forklift.

2.5 Ton Diesel Forklift
Product advantages: Balanced power output, easy operation, good fuel economy, reliable all-weather performance.
Application scenarios: Factory workshop cargo moving, medium-sized warehouse, farm cargo handling, building material storage.
Services we offer: Customization (tonnage, forks, lifting height, attachments, color, brand, EPA engine), 1-year after-sales service, free replacement of spare parts, certificates including ISO, CE, 724h online customer service and technical support. Tires can also be customized.

Get Inquiry

Product details

Model	–	CPC25
Power	–	Diesel
Rated lifting load	KG	2500
Load center distance	mm	500
Driving mode	–	Seat driving
Length with fork	mm	3650
Length without fork	mm	2580
Width	mm	1170
Height when the mast not raised	mm	2070
Overhead guard height	mm	2070
Wheelbase	mm	1600
Front overhang	mm	477
Rear overhang	mm	494
Minimum ground clearance	mm	110
No-load maximum lifting height	mm	3000
Free lifting height	mm	160
Minimum turning radius (outer side)	mm	2240
Mast tilt angle (front/rear)	(°)	6°/12°
No-load maximum lifting speed	mm/s	530
Full-load maximum lifting speed	mm/s	500
No-load maximum working speed	Km/h	19
Full-load maximum working speed	Km/h	17
Full-load maximum gradeability	%	20
Forklift weight under standard no-load condition	Kg	3500
Tire no. (F/R)	–	2/2
Tire type (F/R)	–	Air inflation tire
Tire size (F)	–	7.00×12，12PR
Tire size (R)	–	6.00×9,10PR
Brake/service brake	–	Power brake–pedal
Parking brake	–	Mechenical–manual
Battery voltage/capacity	V/Ah	12/80
Engine model	–	xinchai/quanchai490
Engine fuel tank capacity	L	50
