4.5ton internal combustion forklift

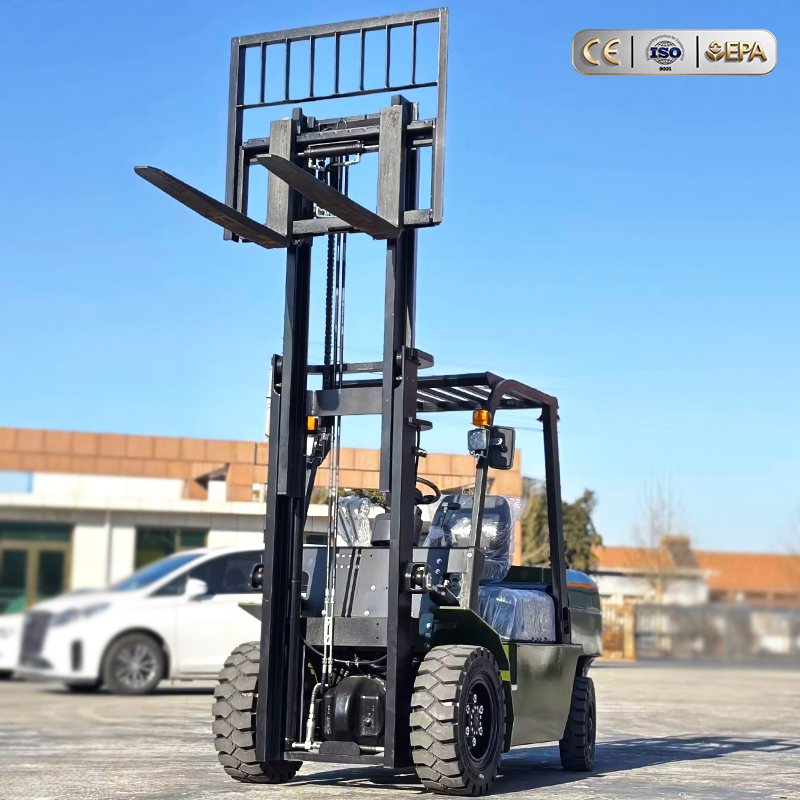

4.5 Ton Diesel Forklift

Product advantages: High load capacity, impact-resistant structure, good climbing performance, durable for heavy work.

Application scenarios: Machinery factory, stone yard, large building material warehouse, freight station.

Services we offer: Customization (tonnage, forks, lifting height, attachments, color, brand, EPA engine), 1-year after-sales service, free replacement of spare parts, certificates including ISO, CE, 724h online customer service and technical support. Tires can also be customized.

Get Inquiry

Product details

Model	–	CPC45
Power	–	Diesel
Rated lifting load	KG	4500
Load center distance	mm	500
Driving mode	–	Seat driving
Length With fork	mm	4120
Length Without fork	mm	3050
Width	mm	1400
Height when the mast not raised	mm	2370
Overhead guard height	mm	2230
Wheelbase	mm	1900
Front overhang	mm	590
Rear overhang	mm	550
Minimum ground clearance	mm	150
No-load maximum lifting height	mm	3000
Free lifting height	mm	150
Minimum turning radius (outer side)	mm	2820
Mast tilt angle (front/rear)	(°)	6°/12°
No-load maximum lifting speed	mm/s	460
Full-load maximum lifting speed	mm/s	420
No-load maximum working speed	Km/h	24
Full-load maximum working speed	Km/h	24
Full-load maximum gradeability	%	20
Forklift weight under standard no-load condition	Kg	5860
Axle full load F/R	–	9080/1370
Axle no load F/R	–	2950/3780
Tire no. (F/R)	–	2/2
Tire type (F/R)	–	Air inflation tire300-15/700-12
Brake/service brake	–	Power brake–pedal
Parking brake	–	Mechenical–manual
Battery voltage/capacity	V/Ah	2-12/80A
Engine model	–	Xinchai A498
Engine fuel tank capacity	L	65
