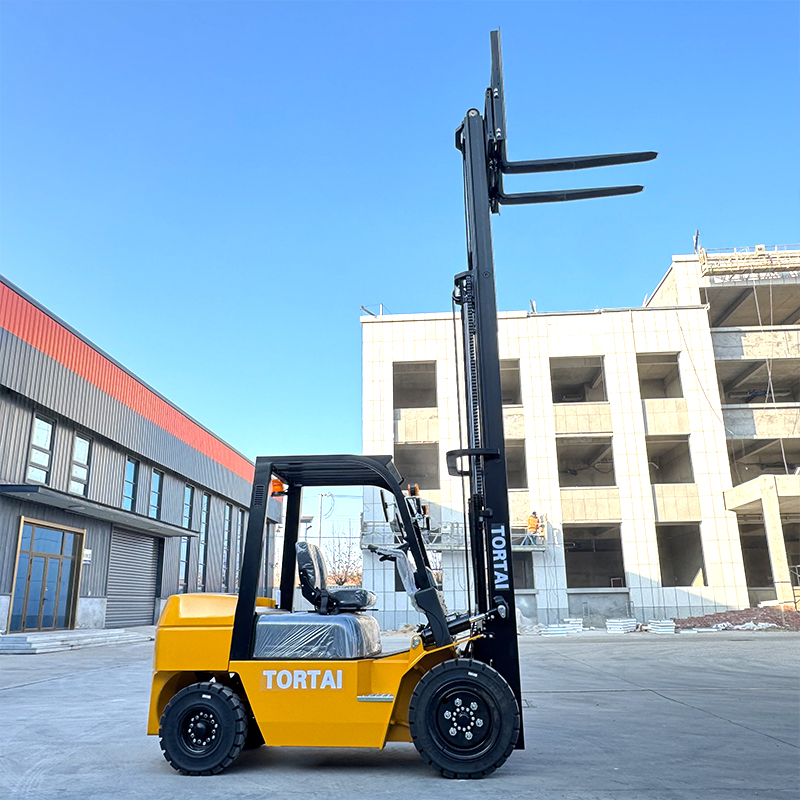

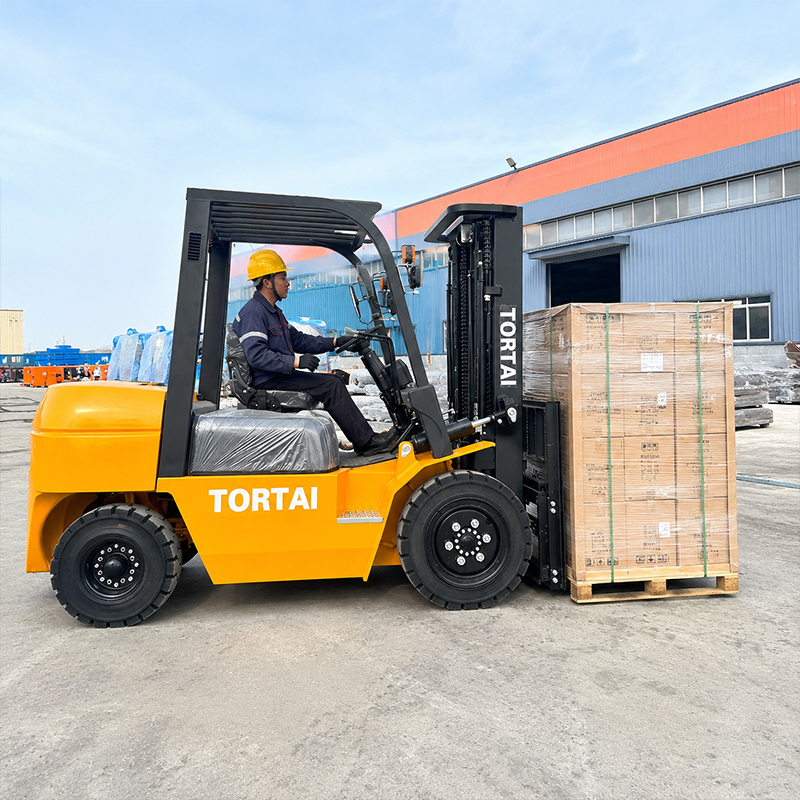

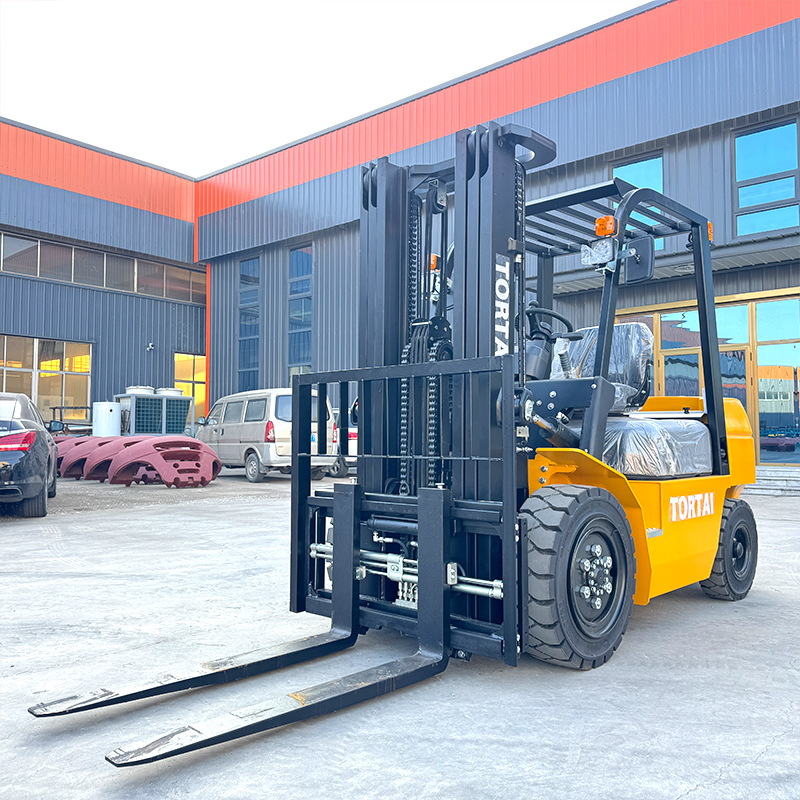

3.5 Ton Diesel Forklift
Product advantages: Excellent loading stability, mature power system, strong adaptability for outdoor rough ground.
Application scenarios: Logistics park, timber yard, hardware factory, construction site goods handling.
Services we offer: Customization (tonnage, forks, lifting height, attachments, color, brand, EPA engine), 1-year after-sales service, free replacement of spare parts, certificates including ISO, CE, 724h online customer service and technical support. Tires can also be customized.

Get Inquiry

Product details

Model	–	CPC35
Power	–	Diesel
Rated lifting load	KG	3500
Load center distance	mm	500
Driving mode	–	Seat driving
With fork	mm	3930
Without fork	mm	2690
Width	mm	1210
Height when the mast not raised	mm	2130
Overhead guard height	mm	2100
Wheelbase	mm	1700
Front overhang	mm	479
Rear overhang	mm	520
Minimum ground clearance	mm	110
No-load maximum lifting height	–	Two-level 5000
Free lifting height	mm	160
Minimum turning radius (outer side)	mm	2240
Mast tilt angle (front/rear)	(°)	6°/12°
No-load maximum lifting speed	mm/s	505
Full-load maximum lifting speed	mm/s	485
No-load maximum working speed	Km/h	20
Full-load maximum working speed	Km/h	18
Full-load maximum gradeability	%	20
Forklift weight under standard no-load condition	Kg	4450
Tire no. (F/R)	–	2/2
Tire type (F/R)	–	Air inflation tire
Tire size (F)	–	28×9-15
Tire size (R)	–	6.50-10
Brake/service brake	–	Power brake–pedal
Parking brake	–	Mechenical–manual
Battery voltage/capacity	V/Ah	12/80
Engine model	–	quanchai C490
Engine fuel tank capacity	L	60
