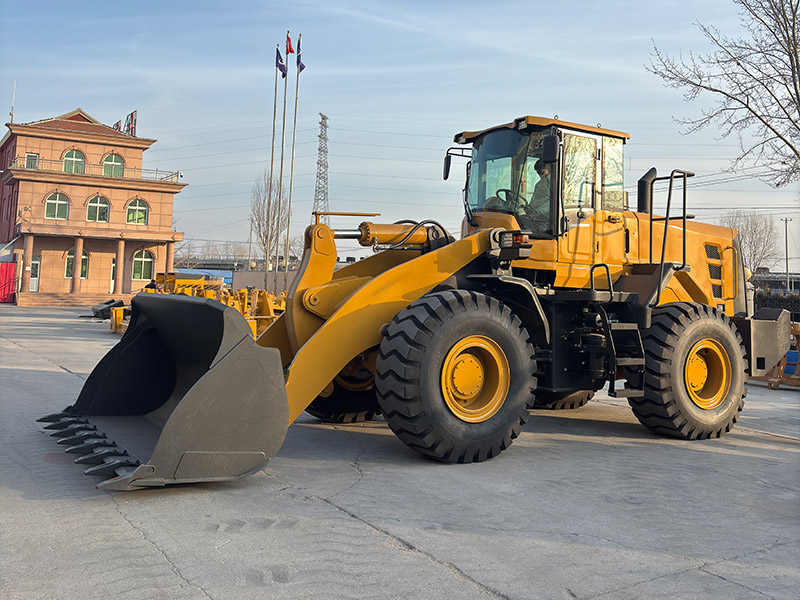

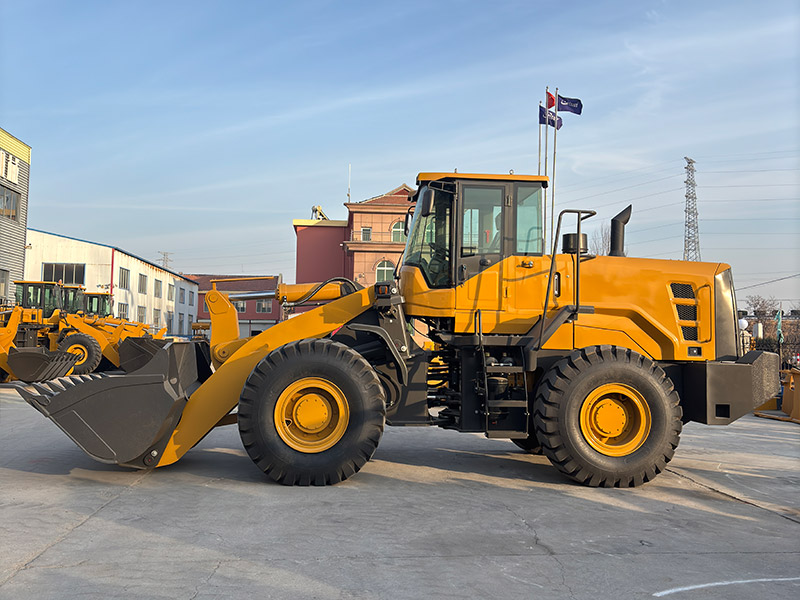

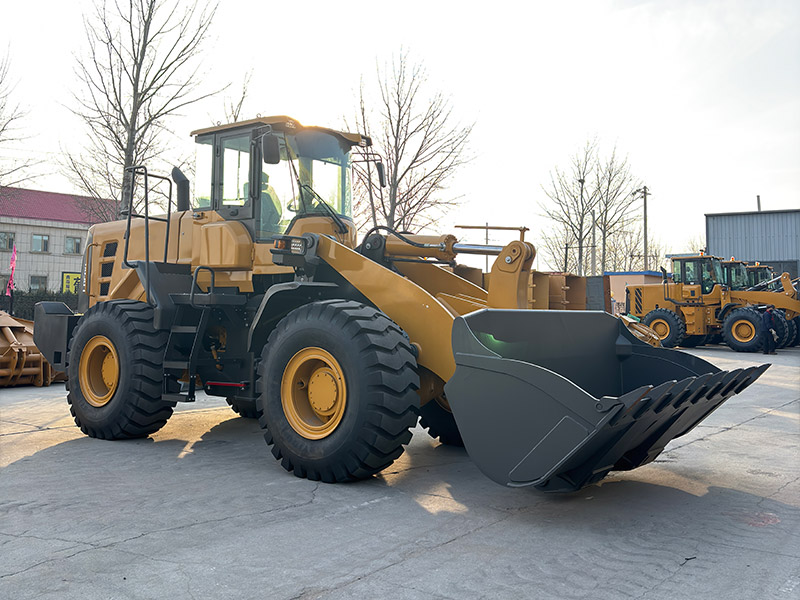

The 6-ton standard loader is a powerful and reliable machine designed to perform the toughest loading jobs on large construction sites, quarries, mining and large warehouse complexes. The payload capacity of 6000 kg allows you to work efficiently with mining, ore, large building blocks, metal rolling and other heavy loads.
Equipped with a powerful 145 kW diesel engine and an enhanced hydraulic system, the loader ensures high performance even in round-the-clock operation. The reinforced bucket with wear-resistant overlays and enhanced abrasive wear protection guarantees a long service life when working with the heaviest materials.
All-metal housing and reinforced frame guarantee durability and reliability during intensive operation. A comfortable cab with a panoramic view and ergonomic handling reduces operator fatigue, while full drive and reinforced suspension provide excellent maneuverability on any surface.
| Parameter | Value |
|---|---|
| Model | TORTAI WL-960 |
| Lifting capacity | 6,000 kg |
| Bucket capacity | 3.6 m³ |
| Engine | Diesel, 145 kW / 197 hp |
| Operating weight | 19,500 kg |
| Maximum speed | 36 km/h |
| Dump height | 3,300 mm |
| Turning radius (over the outer wheel) | 6,500 mm |
| Fuel tank capacity | 220 L |
| Tire size | 23.5-25 (16PR) |
| Drive | 4×4, all-wheel drive |
| Transmission | Hydro-mechanical, 2 speeds |
| Hydraulic system pressure | 18 MPa |
| Overall dimensions (L×W×H) | 8,300 × 2,900 × 3,600 mm |
| Ground clearance | 430 mm |
| Bucket raising time | 6.5 s |
| Bucket lowering time | 4.2 s |
| Operating temperature | from -30°C to +45°C |
Fields of application
Large construction sites – movement of sand, crust, concrete and construction waste, loading of bunkers and dump trucks, backfilling of trenches.
Careers and mining industry – loading of ore, ore and minerals, maintenance of crushing plants, cleaning of workplaces.
Large warehouse complexes – moving bulk materials in open warehouses, loading and unloading railway wagons and containers.
Metallurgical industry – the movement of metal, shaft and other heavy materials.
Port terminals – loading and unloading of ships, the movement of containers and bulk cargo in ports.
Utilities – snow removal, cleaning of streets and parks, improvement of territories, removal of garbage.
