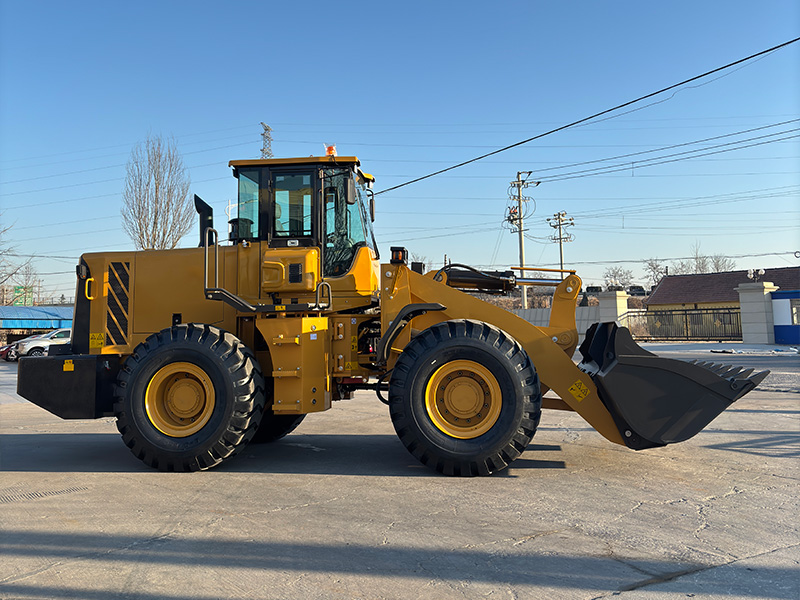

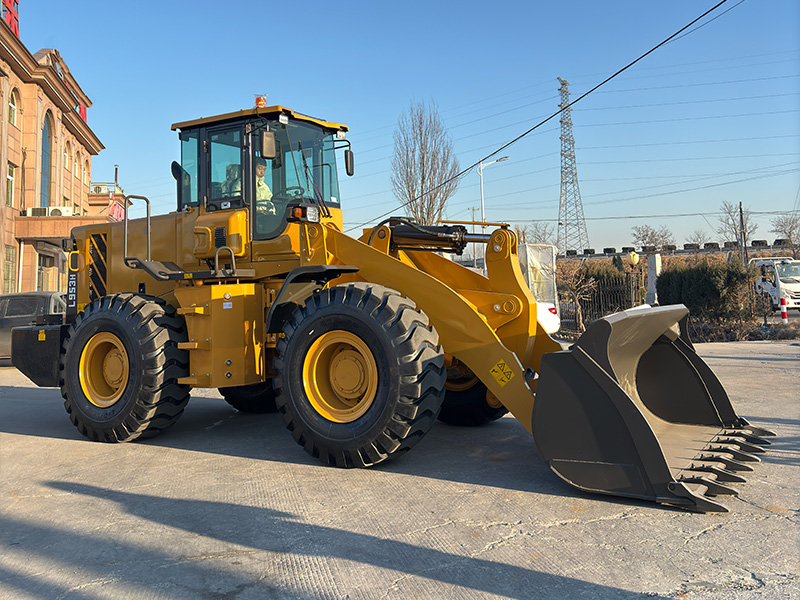

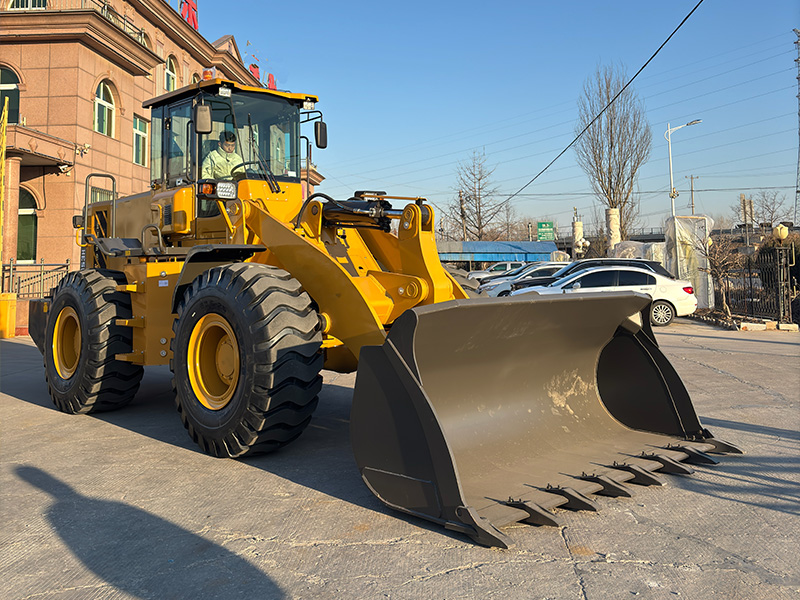

5-ton standard loader is a powerful and reliable machine designed for heavy loading operations at large construction sites, quarries, mining industry, and large warehouse complexes. A lifting capacity of 5000 kg enables efficient work with rock mass, ore, large construction blocks, and other heavy cargo.
Equipped with a powerful diesel engine and a reinforced hydraulic system, the loader ensures high performance even during round-the-clock operation. The reinforced bucket with wear-resistant liners and enhanced protection against abrasive wear guarantees a long service life when handling the heaviest materials.
The comfortable cab with panoramic visibility and ergonomic controls reduces operator fatigue, while all-wheel drive and a reinforced suspension with improved shock absorption provide excellent flotation on any surface.
The model is available with various types of attachments: buckets of different capacities, pallet forks, snow ploughs, hydraulic hammers, and other devices, making the loader as versatile as possible.
| Parameter | Value |
|---|---|
| Model | TORTAI WL-950 |
| Lifting capacity | 5,000 kg |
| Bucket capacity | 3.0 m³ |
| Engine | Diesel, 120 kW / 163 hp |
| Operating weight | 16,500 kg |
| Maximum speed | 36 km/h |
| Dump height | 3,200 mm |
| Turning radius (over the outer wheel) | 6,200 mm |
| Fuel tank capacity | 200 L |
| Tire size | 20.5-25 (16PR) |
| Drive | 4×4, all-wheel drive |
| Transmission | Hydro-mechanical, 2 speeds |
| Hydraulic system pressure | 18 MPa |
| Overall dimensions (L×W×H) | 7,800 × 2,800 × 3,500 mm |
| Ground clearance | 420 mm |
| Bucket raising time | 6.0 s |
| Bucket lowering time | 4.0 s |
| Operating temperature | from -30°C to +45°C |
Fields of application
Quarries and mining — loading rock mass, ore and minerals, servicing crushers, cleaning work areas.
Agriculture — loading grain, fertilizers and feed, handling silage and hay, servicing granaries and farms.
Large warehouse complexes — moving bulk materials in open storage yards, loading and unloading railway cars and containers.
Municipal services — snow removal, street and park cleaning, grounds maintenance, waste haulage.
Forestry — handling logs and timber, loading and unloading forest products, clearing logging sites.
