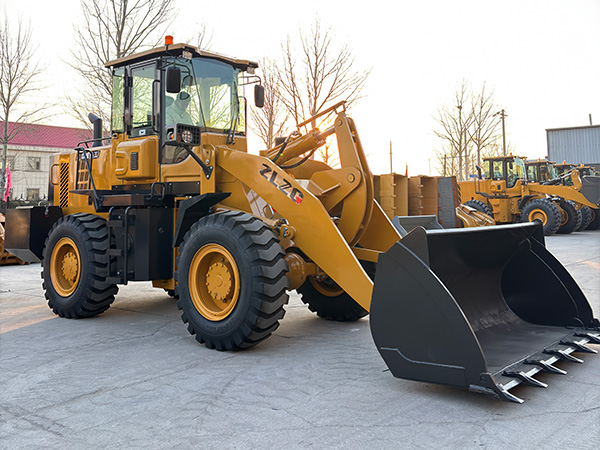

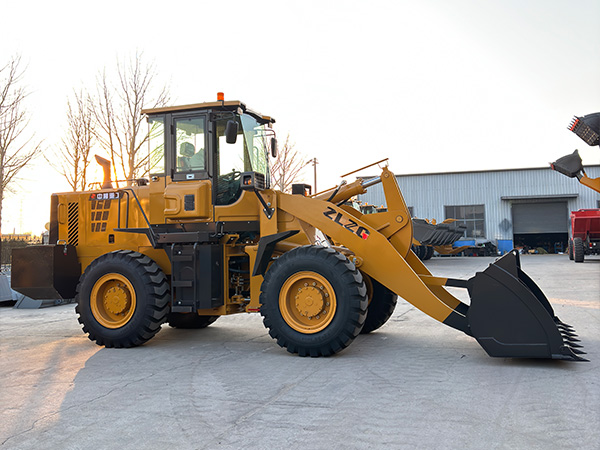

3-ton standard loader is a versatile machine designed for a wide range of tasks at construction sites, warehouses, in agriculture and municipal services. A lifting capacity of 3000 kg enables efficient work with bulk materials, construction waste, soil, and other cargo.
Equipped with a reliable diesel engine and a reinforced hydraulic system, the loader ensures high performance even during prolonged operation. The reinforced bucket with wear-resistant liners guarantees a long service life when handling abrasive materials.
The comfortable cab with panoramic visibility and ergonomic controls reduces operator fatigue, while all-wheel drive and a reinforced suspension provide excellent flotation on any surface.
The model is available with various types of attachments: buckets of different capacities, pallet forks, snow ploughs, and other devices, making the loader as versatile as possible.
| Parameter | Value |
|---|---|
| Model | TORTAI WL-936 |
| Lifting capacity | 3,000 kg |
| Bucket capacity | 1.8 m³ |
| Engine | Diesel, 92 kW / 125 hp |
| Operating weight | 10,500 kg |
| Maximum speed | 38 km/h |
| Dump height | 3,100 mm |
| Turning radius (over the outer wheel) | 5,600 mm |
| Fuel tank capacity | 130 L |
| Tire size | 17.5-25 (12PR) |
| Drive | 4×4, all-wheel drive |
| Transmission | Hydro-mechanical, 2 speeds |
| Hydraulic system pressure | 18 MPa |
| Overall dimensions (L×W×H) | 7,200 × 2,400 × 3,300 mm |
| Ground clearance | 380 mm |
| Bucket raising time | 5.5 s |
| Bucket lowering time | 3.5 s |
| Operating temperature | from -30°C to +45°C |
Fields of application
Construction sites — handling sand, gravel, concrete and construction waste, loading hoppers and dump trucks, backfilling trenches.
Quarries and mining — loading rock mass, ore and minerals, servicing crushers, cleaning work areas.
Agriculture — loading grain, fertilizers and feed, handling silage and hay, servicing granaries and farms.
Warehouse complexes — moving bulk materials in open storage yards, loading and unloading railway cars and containers.
Municipal services — snow removal, street and park cleaning, grounds maintenance, waste haulage.
Forestry — handling logs and timber, loading and unloading forest products, clearing logging sites.
