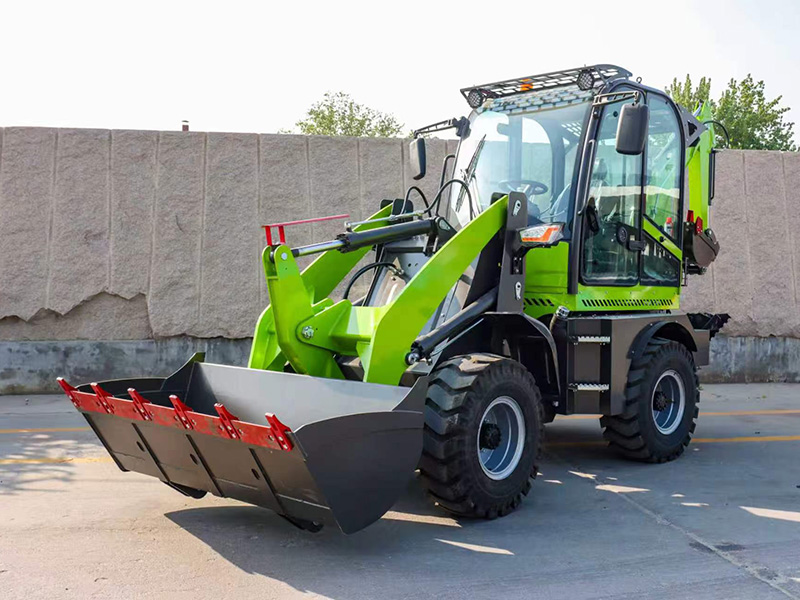

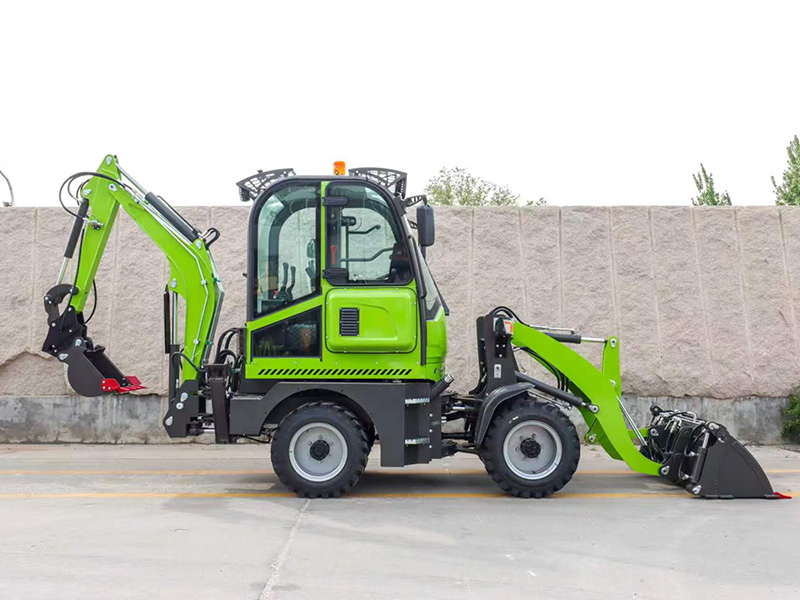

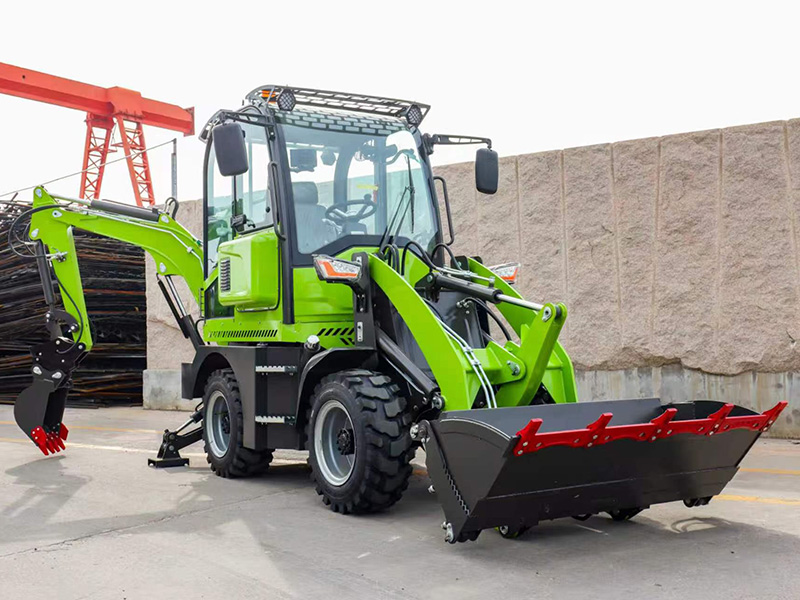

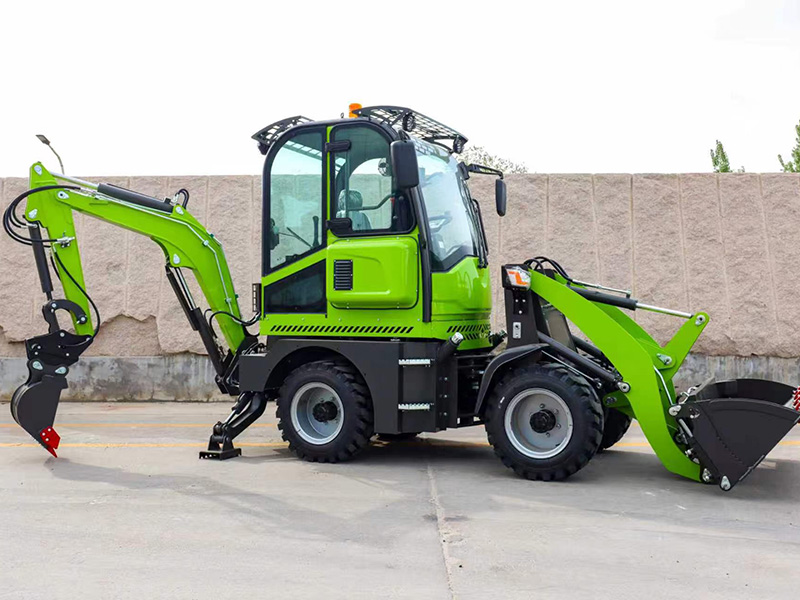

Excavator-loader

✔️ Two functions in one machine – the combination of excavator and loader replaces two units of equipment, saving the cost of acquisition and maintenance.

✔️ Versatility of application – suitable for construction, utilities, agriculture and road works.

✔️ High performance – the 80 kW diesel engine ensures efficient operation when performing various tasks.

✔️ Construction – digging trenches and boilers, moving sand, gravel and construction debris, backfilling.

✔️ Utilities – snow removal, cleaning of streets and parks, improvement of territories.

✔️ Agriculture – digging canals and trenches for irrigation, loading fertilizers, feed and grain.

Product details

Parameter Value
Machine gross weight 2770 kg
Machine overall length 5900 mm
Machine overall width 1700 mm
Machine overall height 2500 mm
Rated power 40 kW
Excavator bucket capacity 0.1 m³
Loader bucket capacity 0.5 m³
Digging force 25 kN
Lifting force 36 kN
Travel speed 0–26 km/h
Gradeability 25°
Turning radius 2900 mm
System working pressure 16 MPa
Digging depth 2000 mm
Digging radius 2900 mm
Excavator bucket dump height 1850 mm
Loader bucket dump height 2500 mm
Loader bucket dump reach 800 mm
Loader bucket cycle time 12 s
Track width 1630 mm
Wheelbase 2670 mm
Tire model 20.5–16
Control mode Mechanical lever control

Twenty years of engineering experience, own factory, CE/ISO certificates.

Automated lines, large stock of finished products, fast shipping.

Processing of custom equipment: loaders, mining and storage equipment.

24/7 support, worldwide spare parts supply, operator training.
