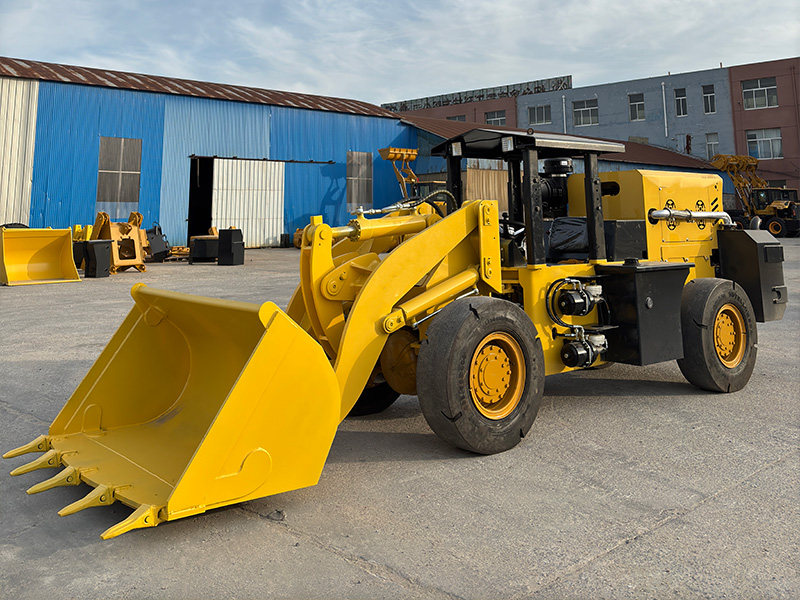

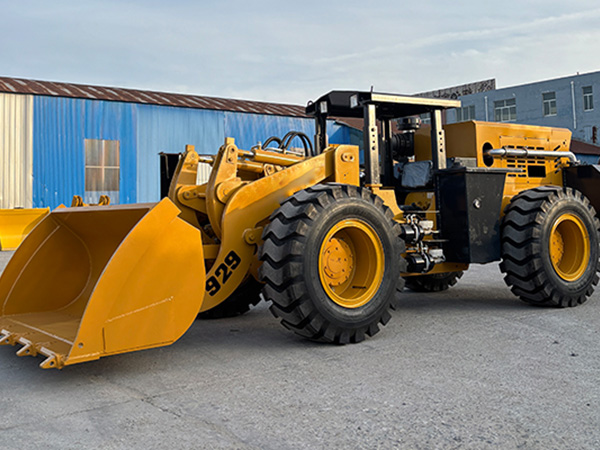

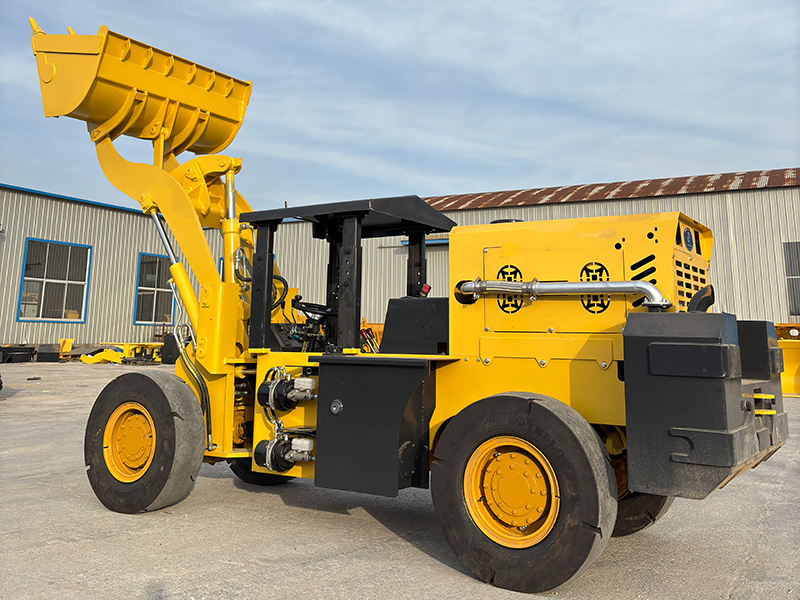

The 928 Mine Loader is a high-performance machine designed to perform intensive loading work in the underground conditions of mines, mines and other mining enterprises. The equipment is characterized by increased reliability, safety and performance, which allows it to work efficiently in difficult conditions of limited space, increased dust and humidity.
The design of the machine is adapted to work in underground works: low profile, reinforced frame, system of protection against overturning and falling objects. The 92 kW diesel engine is equipped with an exhaust gas purification system and a fire extinguisher, which meets the safety requirements for underground work.
The enhanced hydraulic system ensures smooth control and high performance when working with ore, ore and other materials. Compact dimensions and small turning radius allow efficient operation in narrow strokes and chambers.
The airtight cab with ventilation and air conditioning system creates comfortable conditions for the operator, and the panoramic view and ergonomic control reduce fatigue during long shifts.
| Parameter | Value |
|---|---|
| Model | TORTAI 928 |
| Lifting capacity | 2,800 kg |
| Bucket capacity | 1.8 m³ |
| Engine | Diesel, 92 kW / 125 hp |
| Operating weight | 8,500 kg |
| Maximum speed | 20 km/h |
| Dump height | 2,800 mm |
| Turning radius | 4,500 mm |
| Fuel tank capacity | 120 L |
| Drive | 4×4, all-wheel drive |
| Transmission | Hydro-mechanical |
| Machine height | 2,200 mm |
| Overall dimensions (L×W×H) | 6,200 × 2,100 × 2,200 mm |
| Operating temperature | from -10°C to +40°C |
